PCB prototyping


LPKF

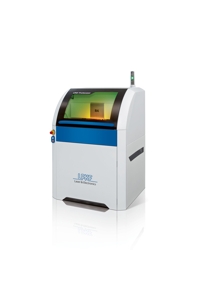

LPKF ProtoLaser R4
LPKF - ProtoLaser R4

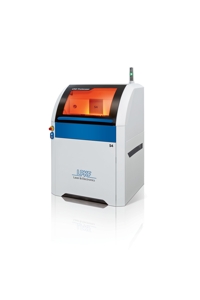

LPKF ProtoLaser S4
LPKF - ProtoLaser S4

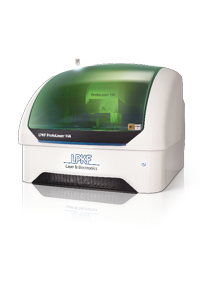

LPKF ProtoLaser H4
LPKF - ProtoLaser H4

Tabletop System for Fast PCB Processing

  • Combines the advantages of mechanical drilling of thick substrates including multilayers with
    extremely fast, contactless, laser surface processing in one tabletop system.
  • Quick surface processing on all common circuit board materials
  • Exact geometries thanks to contactless, scanner-based process
  • Precise drilling and routing of even thick substrates using mechanical drilling.
  • Compact and safe tabletop system: lab-ready, class 1 laser
  • Easy operation using intelligent, intuitive system software LPKF CircuitPro RP

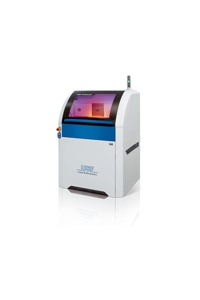

LPKF ProtoLaser U4
LPKF - ProtoLaser U4

The Swiss Army Knife for the Lab

  • Easy to use
  • Faster determination of machine data
  • "Special areas" for higher precision
  • Proven LPKF software basis
Brochure
