LPKF ProtoPrint S4

  • ProtoPrint S4 - Tiskanje spajkalne paste

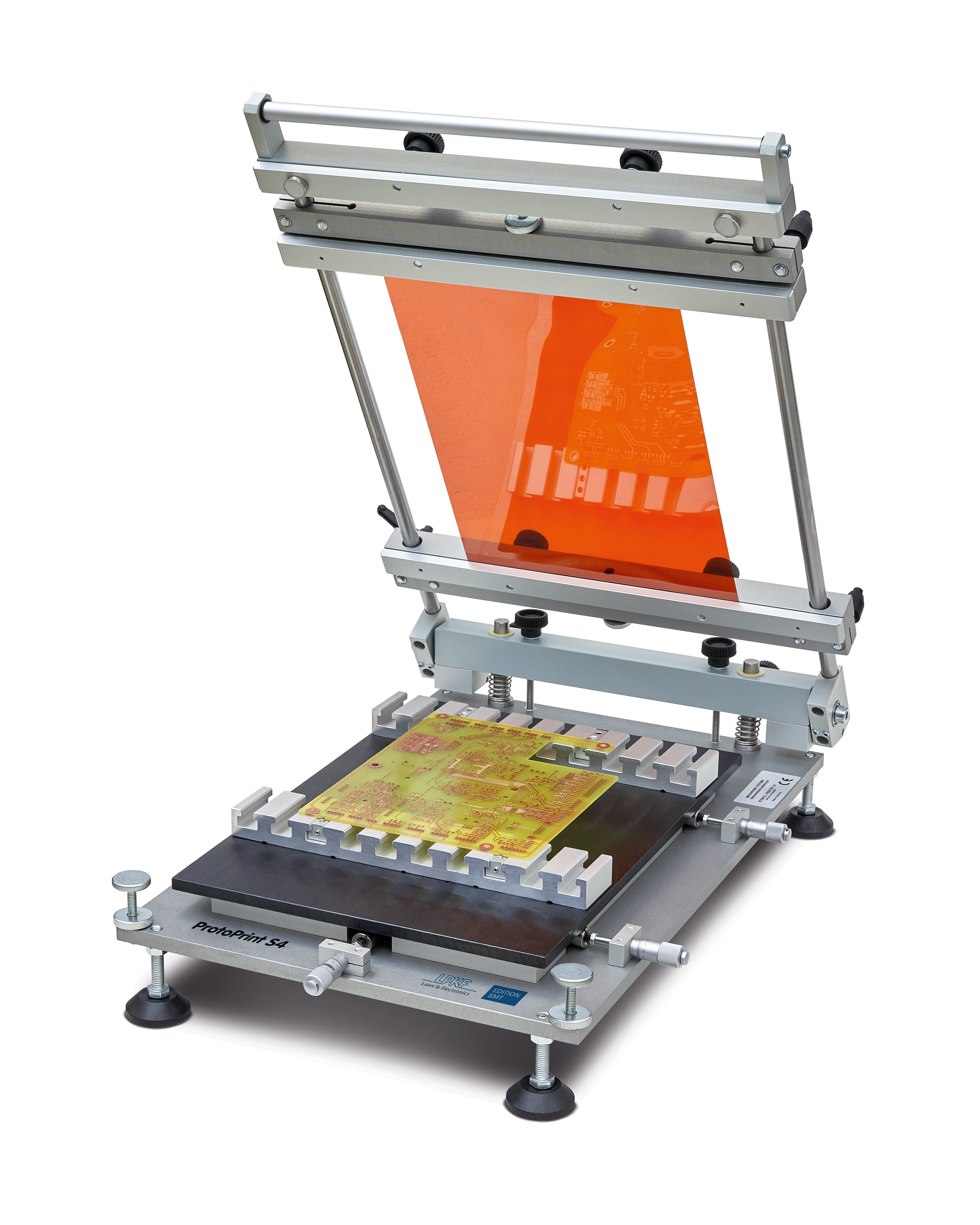

The ProtoPrint S4 from LPKF offers a manual stencil printer for achieving precise printing results. The device is suitable for single-sided and doublesided printing of PCB prototypes and low volumes. Thanks to the integrated clamping frame the ProtoPrint S4 uses stencils made of polyimide film or stainless steel. The squeegee material is defined according to the given stencil material. LPKF stencil printers offer high positioning accuracy, SMD fine-pitch printing, adjustable print height, and quick clamping of the stencil frames. The flat base plate offers adequate space for accommodating magnetic PCB holders. Fine-positioning of the PCB is accomplished via three micrometer screws on the plate for X, Y, and theta axis control.

Click on gallery image to see larger photo:
