Dry Cabinets
Brochure 1Brochure 2Brochure 3

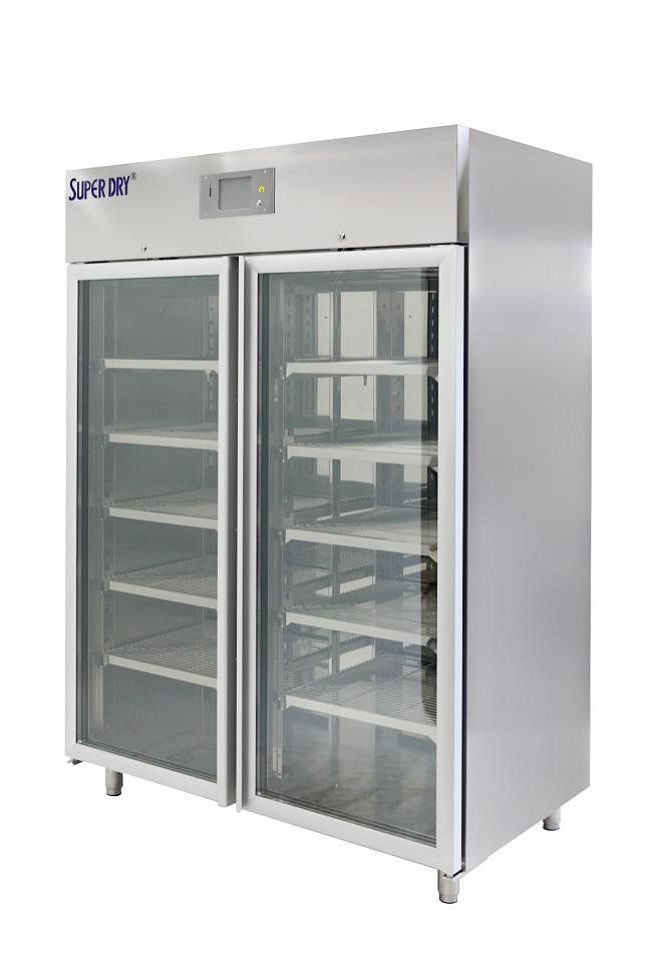

XSD Series
The XSD Series is produced from the highest quality of German designed and built components, and they are assembled and tested in The Netherlands. The XSD provides the most advanced storage and drying process available including uniform heat up to 60°C and ultra low RH > 0.5%. while consuming a tiny fraction of the energy used by conventional methods. An integrated air-flow control system in combination with a high accuracy sensor and powerful new dry unit delivers reliable temperature and humidity control and very fast recovery time. A touch screen interface provides enhanced operator control and ongoing process optimization.
You can find more information about XSD Series in a brochure.
HSD Series
The newly re-engineered HSD (Hyper) Series comprises 6 different models built around our unique "Dynamic Dry Unit." This dry unit provides closed loop regeneration of desiccant by responding to actual load on the cabinet, its contents and the frequency of door openings. The HSD delivers high accuracy humidity control to RH < 0.5%, traceable to a computer or over a network and are also designed and built in Germany and assembled and tested in The Netherlands.
You can find more information about HSD Series in a brochure.
MSD Series
A cabinet that grows with your demand, the MSD series is the first modular dry cabinet that can be expanded as your storage and drying needs increase. Incorporating our extremely powerful, Dynamic Dry Unit, the basic MSD can be expanded to 6000 liters without the need for additional dry units. Regeneration times are reduced due to the closed loop control of the dry unit which automatically responds to atmosphere and frequency door openings, whil delivering precise humidity control to <0.5% RH with traceability to a computer or network.
MSD 1222-52
New generation of MSD cabinet. The cabinets of this series are adjusted and improved on several points. The MSD cabinets are completely ESD save. The construction of the cabinets and the doors have been made stronger and more stable. The door sealings are additionally improved to prevent any kind of air leaks threw the doors. The doors have new, stronger locks that lockes the doors more firmly. The top of the front is tilted so the display can be read easier. All wiring is integrated in the construction so it is well protected against damage. The sliding rails of the shelves have been improved. The shelves can now be drawn almost for 100%. As a result stored items can be retrieved much easier. The storage space can be expended with MSD 1223 type cabinets. Made in Germany product.
MSD 1223
New generation of MSD cabinet. To expand the amount of storage space of the MSD 1222-52, the MSD 1223 can be integrated with the MSD 1222-52. The wiring of the cabinet can be connected with the wiring of the MSD 1222-52. The cabinet is equipt with switches that trigger an alarm if the doors are left open or opened to long which causes the rH level to increase above the maximum value. Made in Germany product.
You can find more information about MSD Series in a brochure.
SD Series
The SD series offers a variety of 10 different models to choose from. All SD cabinets deliver high value and incorporate economic desorption technology that conforms to IPC/JEDEC MSD storage specifications of <5% RH.
You can find more information about SD Series in a brochure.
SDA Series
The acrylic SDA range is made for transparent drying or storage of components and can be configured with a choice of desiccant dry unit or N2 delivery system.
You can find more information about SDA Series in a brochure.
SDR (Dry Room) Series
Cabinets in the SDR (Dry Room) Series are specially built to customer specifications. Different dry units are available, depending on the demands of the application. The new U-7000 rotation dry unit makes it possible to dry huge volumes of air. Very short regeneration times, low RH% <0.5% and precise measurement make this a very attractive alternative for special processing requirements.
You can find more information about SDR Series in a brochure.
SDF (Feeder Cabinets) Series
The SDF-Series is fitted with two high-powered, patented Zeolith-drying units. They achieve a very low humidity level of up to <3% rF.
It is simple to operate, and can be used for a range of applications. Traditionally for storage and drying of humidity sensitive components. We recommmend these Series for a short-, medium- to prolonged storage to avoid humidity and oxidation damage. The Super Dry Technology is ideal to avoid micro cracks, delamination and popcorning.
The cabinet is suitable for short- and medium time storage of feeder systems. Mass produced feeder racks provide a safe storage of your components. Our Super Dry Feeder Cabinet makes guarding of components superfluous consequently and guarantees a fast and efficient production. This simple, reliable and safe form of component storage is already used by well-known providers such as Assembleon, Juki, Mimot, Siplace, etc..
The cabinets are divided into two parts and can be combined with shelves in the upper half of the cabinet.
You can find more information about SDF Series in a brochure.
HSD/SD Series - Previous models
The HSD series was developed to protect sensitive components from damage caused by moisture and oxidation. The Dynamic Dry Unit U 5002 guarantees a quick recovery time after door openings and is ideally suited to for applications requiring frequent cabinet access. The HSD series guarantees optimum storage and drying conditions at a relative humidity of below <0.5%. The cabinet's exceptional features include its closed loop, dynamic regeneration process, a high precision sensor and reliable control unit.
The SD Series is equipped with one reliable dry unit to constantly maintain low humidity of <5% RH. Easy to operate, this comprehensive range is recommended for the purpose storage of SMDs at low humidity. Engineered for medium to long-term constant low humidity storage, the SD-101 - 31 is ideal for the moisture-proof and anti-oxidation storage of wide-ranging technologies and conform with IPC Standard 33b.
You can find more information about HSD/SD Series in a brochure.
Is MSD damage the source of your product field failures? Find out through this article: http://www.protean.co.uk/totech/TOT-11-002/index.html
